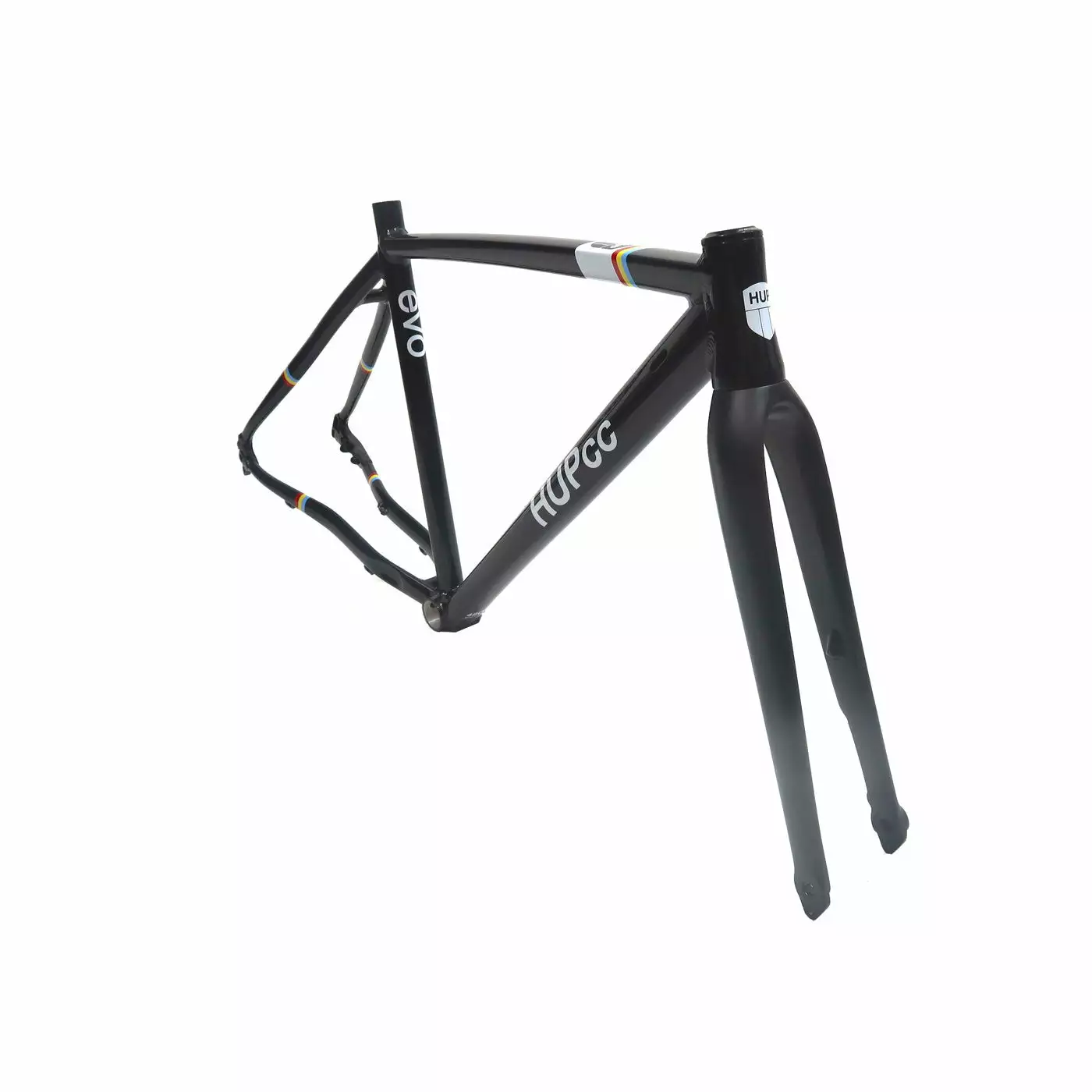

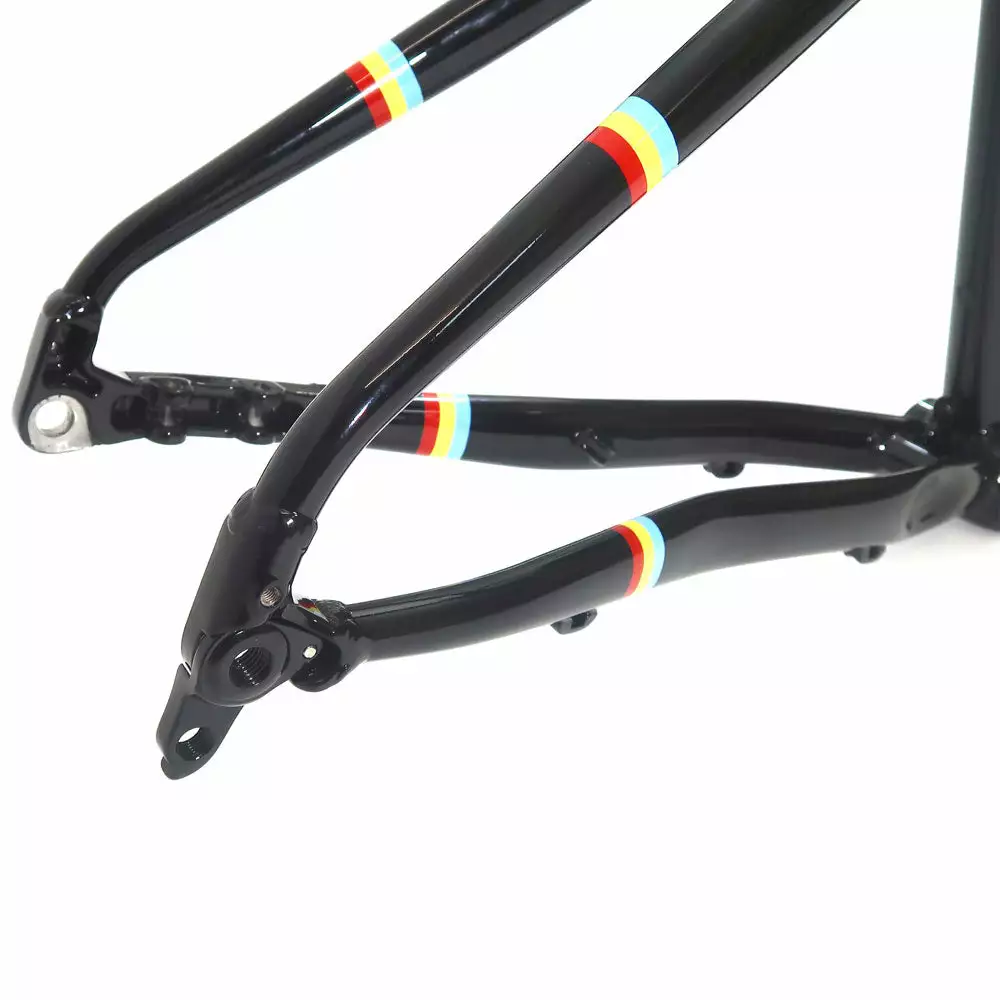

HUPcc CX HUP Evo Cyclocross Disc Frameset (Adult Sizes)

The new HUP evo is a game-changing Cyclocross disc frameset, using unique  geometry to fit youth riders correctly, based on full-sized 700c wheels. Lightweight, low-standover and low stack, these unique frames allow riders of all ages to shoulder easily with it’s curved, flat bottom top-tube – Koksijde ready!

This clever frame design can deal with serious mud, thanks to it’s class-leading 55mm clearance, which also allows the fitting of 650b wheels & 46c tyres. Flat Mount disc brakes produce all-weather braking reliability. Stiff, lightweight thru-axles (just 80g per pair) and a long trail layout increase high-speed stability. A superlight monocoque carbon fork creates a very light front end, improving manoeuvrability especially for smaller/lighter riders.

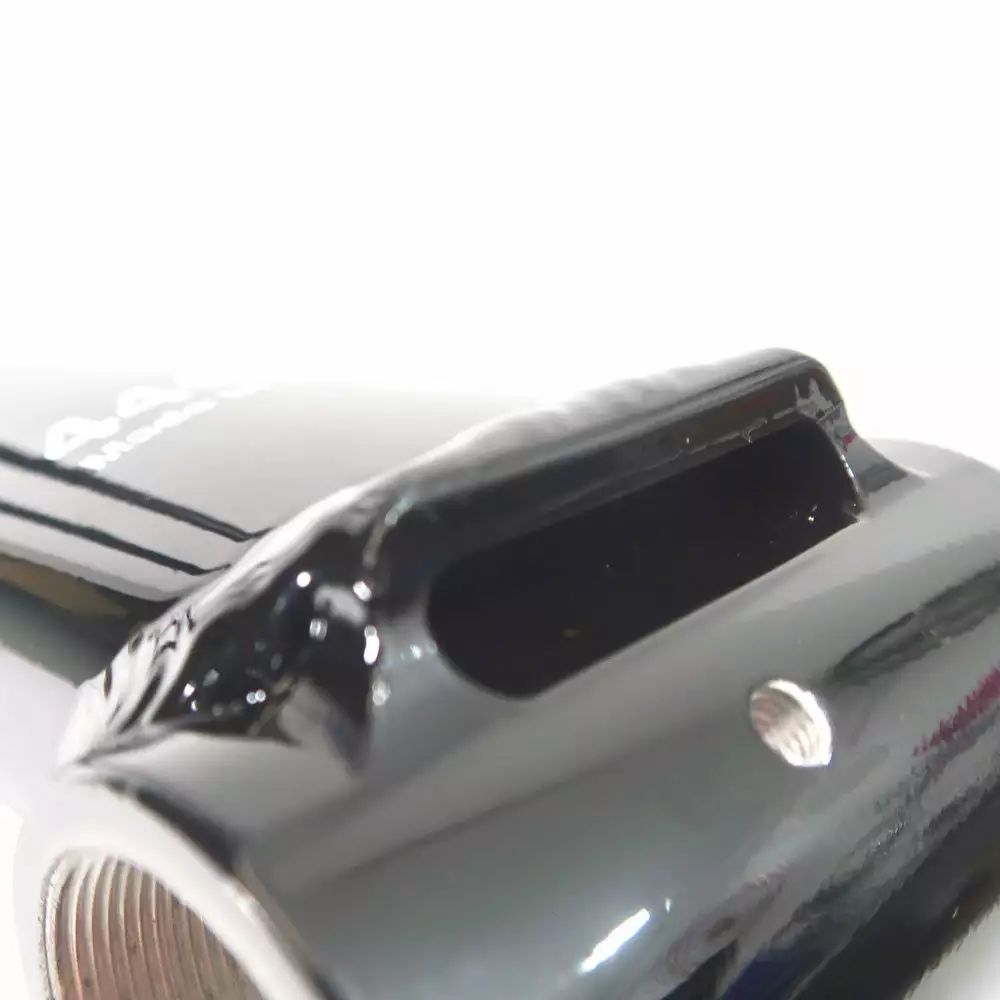

With a triple-butted 7005 frame and full carbon fork, these lightweight framesets use the latest internal cable technology with easy fitting for novice mechanics thanks to a downtube ‘letterbox’. Running full-length outer cables ensures race reliability and reduces Winter maintenance to a minimum.

HUP framesets have been specifically developed with class-leading progressive geometry and when built with the right components, achieve unrivalled fit. It’s the frame everyone want to ride, at the price everyone want to pay!

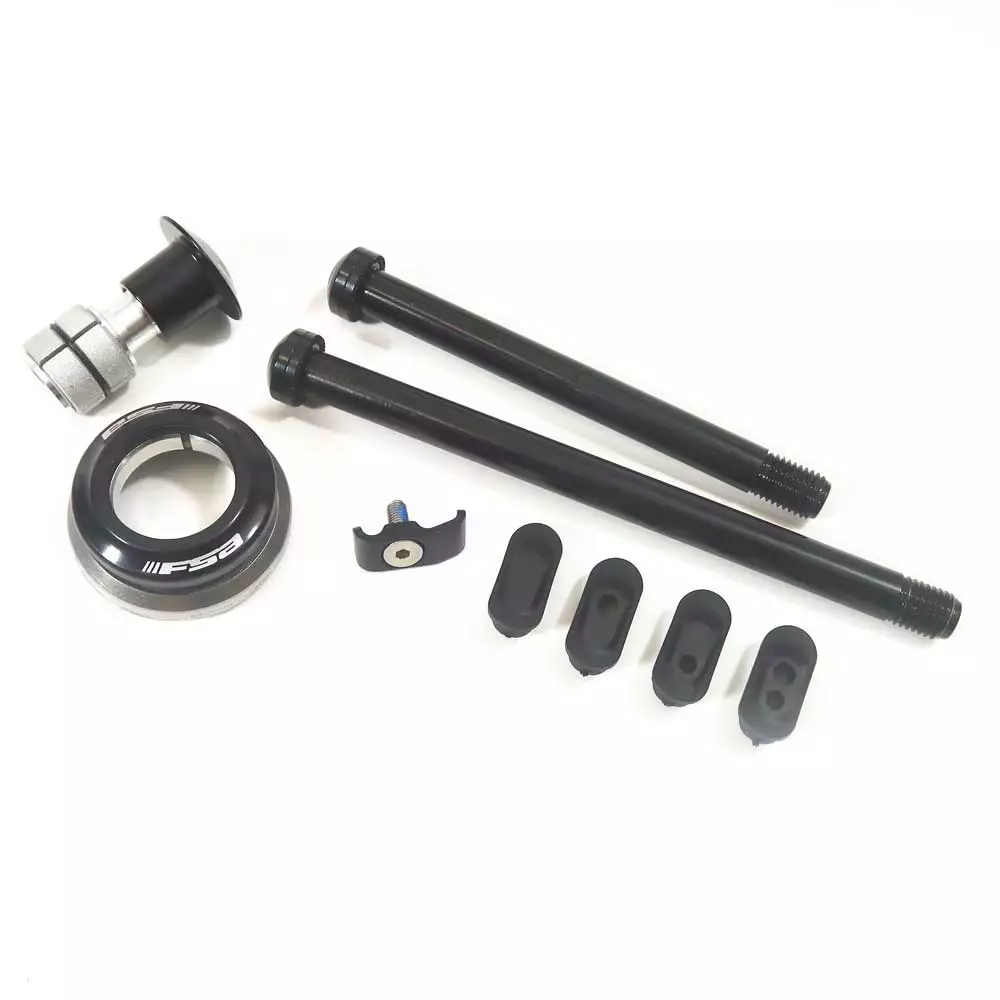

Included with this frameset: frame, fork, headset, mech hanger, thru-axles, BB cable guide & cable fittings.
Self-build bundles or components available separately. HUP framesets are handmade/painted in Taiwan.

Frame Material: Aluminium Alloy 7005 (triple-butted)
Fork Material: Carbon fibre with carbon steerer, 1 1/8″ tapered steerer
Frame Weight*: 50cm: 1435g | 52cm: 1470g | 54cm: 1495g | 56cm: 1.52kg | 58cm: 1.595kg
Fork Weight*: 410g

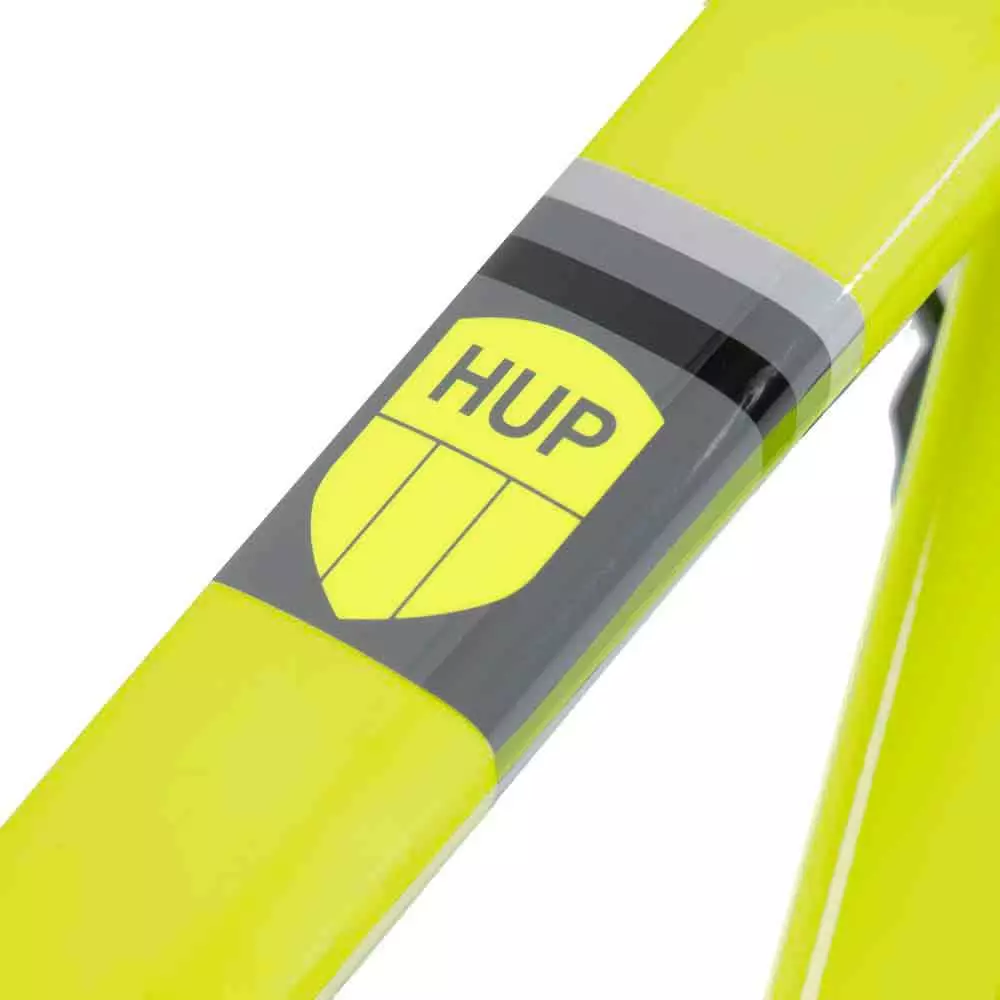

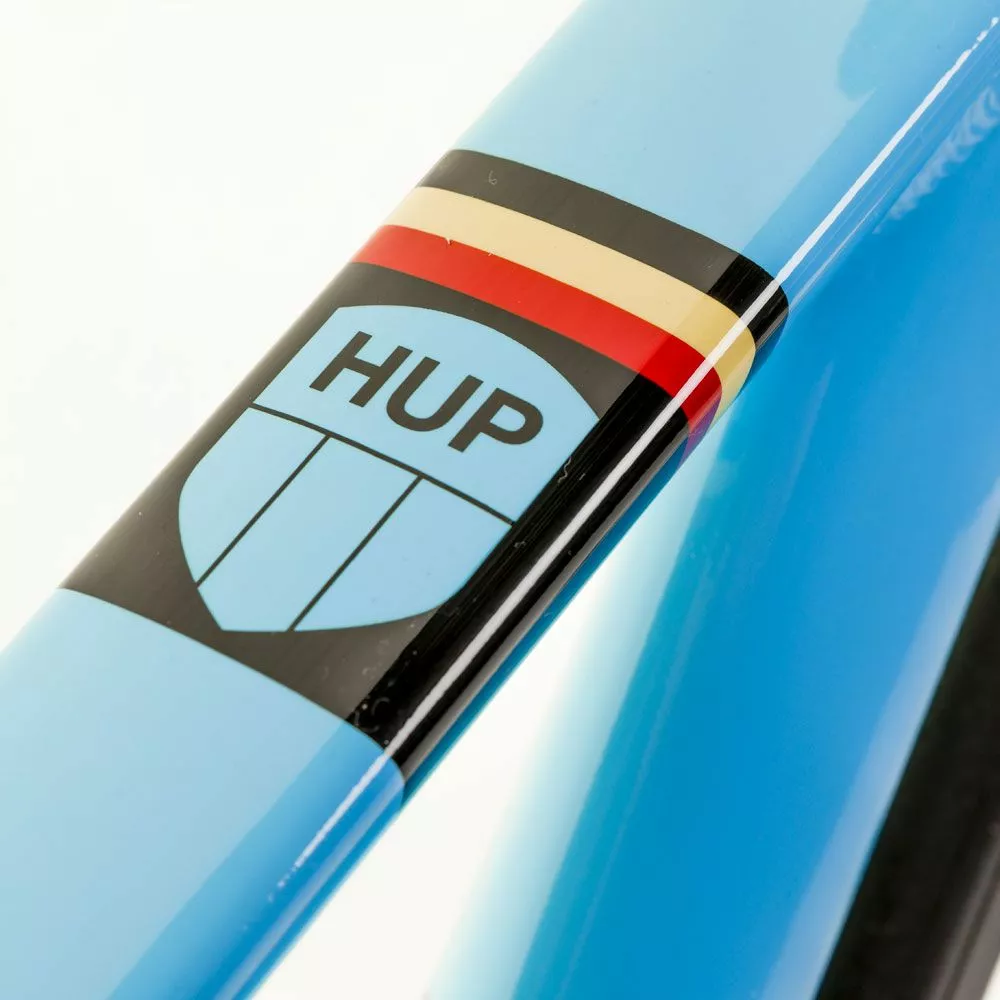

Colour: Stealth Black or Belgian Blue or Yellow – with black carbon finish fork
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: Flat mount disc: 140/160 rear & 140/160 front rotors
Seatpost Diameter: 27.2mm

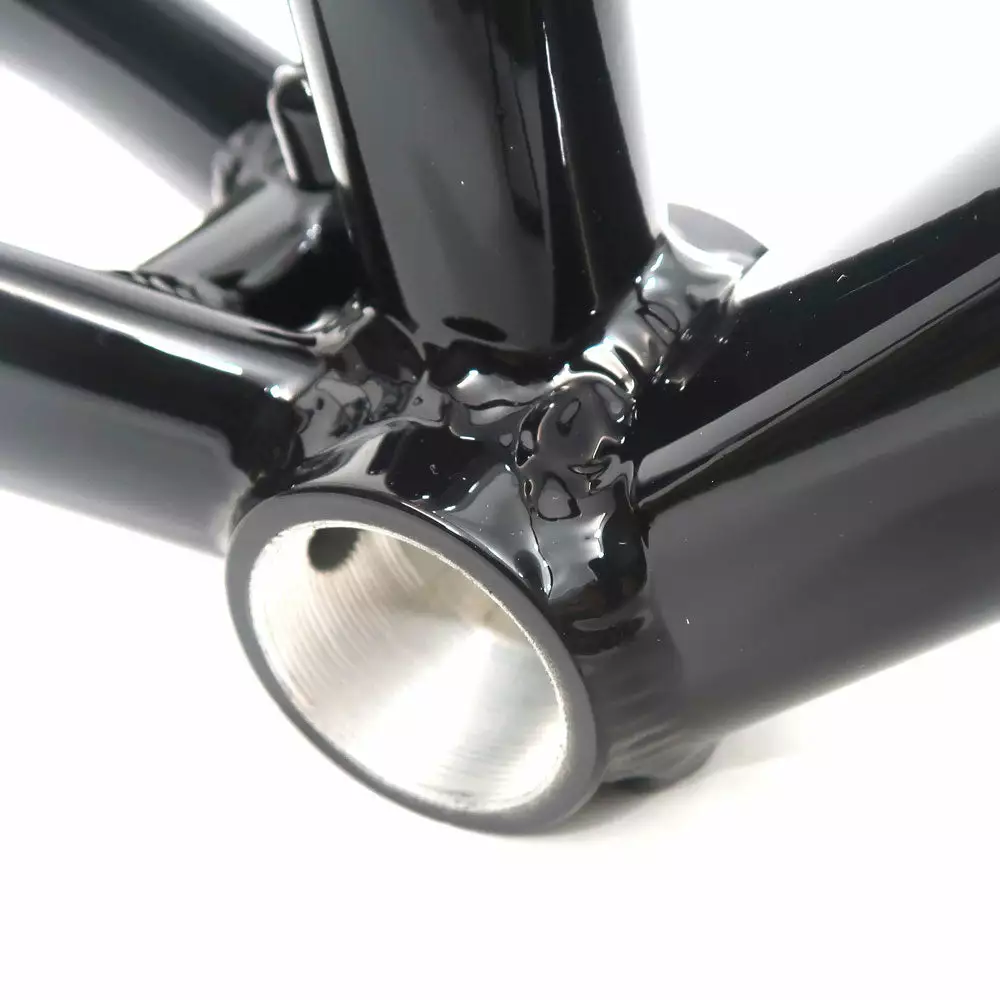

Bottom Bracket: 68mm English
Front Axle OLD: 100mm Shimano thru-axle

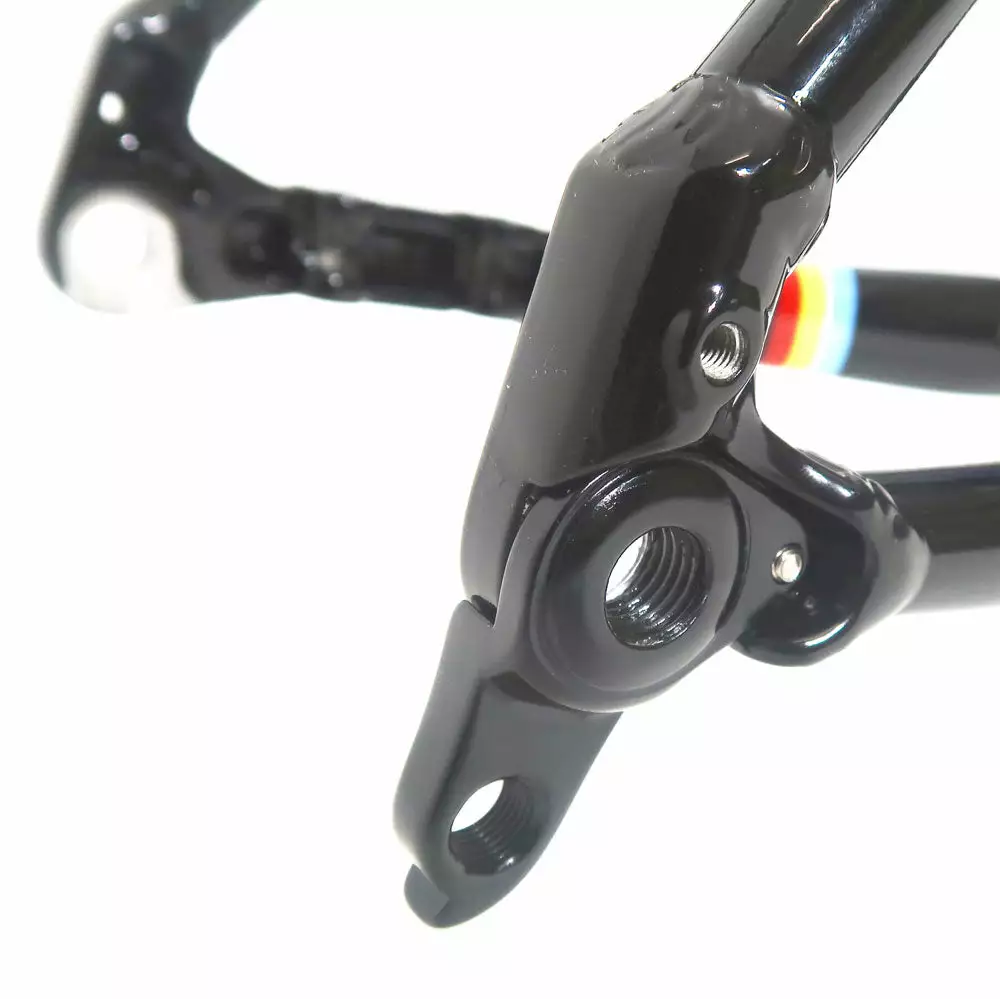

Rear Axle OLD: 142mm Shimano thru-axle
Tyre Clearance: 38c (700c) or 46c (650b)
Maximum Gearing: 44T (1x) or 50/34T

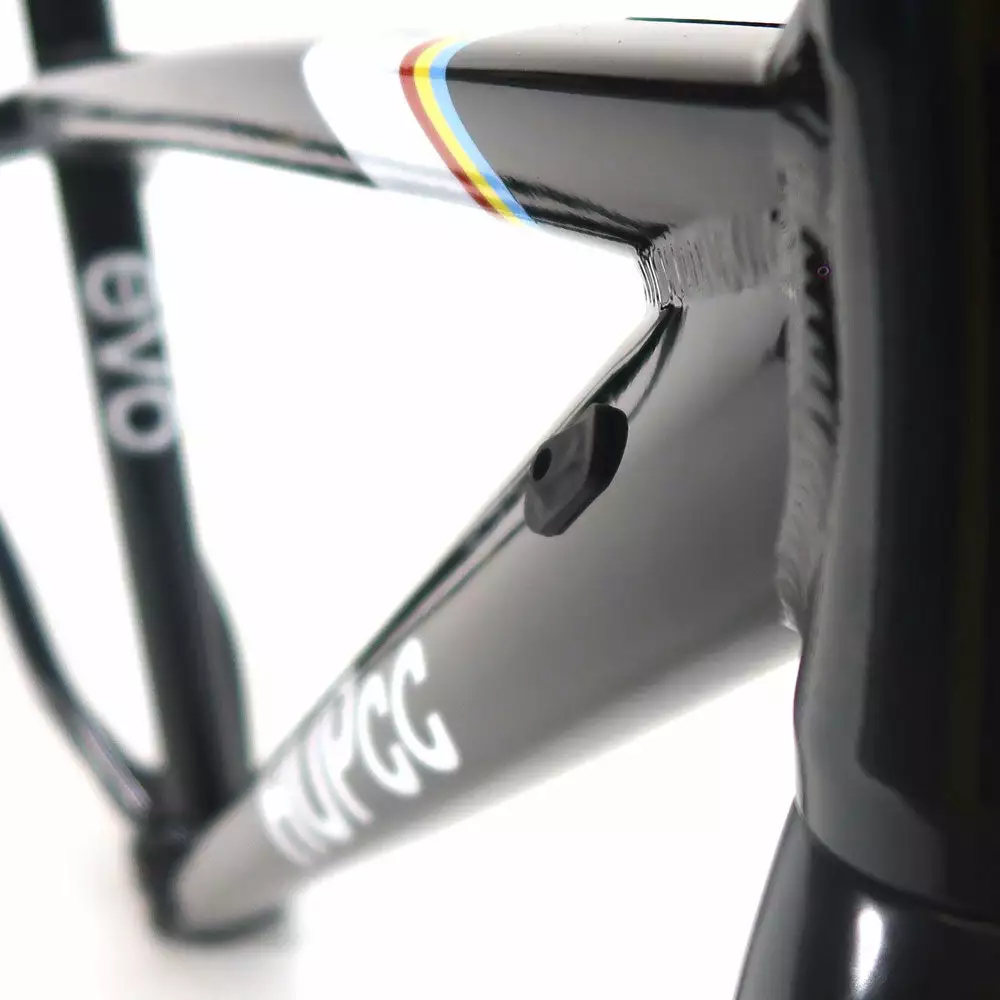

Cabling: internal downtube/top-tube
Note: We recommend you fit frame protection tape.

Geometry:

50cm: Seat Tube 50cm | VTT 52.3cm | Reach 37.3cm | Stack 53.4cm | HT 120mm | HT Angle 71 degrees
52cm: Seat Tube 52cm | VTT 53.8cm | Reach 37.7cm | Stack 54.5cm | HT 130mm | HT Angle 71.5 degrees
54cm: Seat Tube 54cm | VTT 55cm | Reach 38cm | Stack 55.7cm | HT 140mm | HT Angle 72 degrees
56cm: Seat Tube 56cm | VTT 56.2cm | Reach 38.9cm | Stack 56.5cm | HT 155mm | HT Angle 72 degrees
58cm: Seat Tube 58cm | VTT 57.4cm | Reach 39.5cm | Stack 58.4cm | HT 175mm | HT Angle 72 degrees

*Unlike many brands, we quote weights (subject to manufacturing tolerances) and you should always compare full frameset weights for a real world comparison as most brands play a game: quote light frames, but supply heavy alloy steerer forks, thru-axles & headsets! HUP doesn’t play games, but we do build light bikes.

Go Social with HUP Competition Cycling: #HUPcc #HUPbikes #HUPevo

We have riders from 3ft 10″ to 6ft+ on our HUP bikes (including Mums and Dads too with 37cm to 58cm frame sizes). From the brutal Cyclocross Nationals to Summer road races, junior Triathlon, Winter and Summer Track Omniums or MTB XC, they’ve done it all. Here is a small selection below…
